Flush Trim and Pattern Router Bits for Template Routing and Edge Trimming

Flush trim and pattern router bits use a pilot bearing to follow a template or reference surface, cutting the workpiece perfectly flush with it. This makes them indispensable for template routing identical parts, trimming laminate or veneer to the substrate edge, and cleaning up band-sawn curves to a finished profile.

Mega Flush Trim, Downshear, and Multi-Bearing Options

The Mega Flush Trim Router Bits feature an extra-long cutting length for trimming thick laminates and deep template-routing passes in a single cut. The Flush Trim Bits with Downshear add a downshear geometry to the cutting edges, which shears the top surface of the workpiece downward to prevent tearout — valuable when working with veneered panels or delicate face grain.

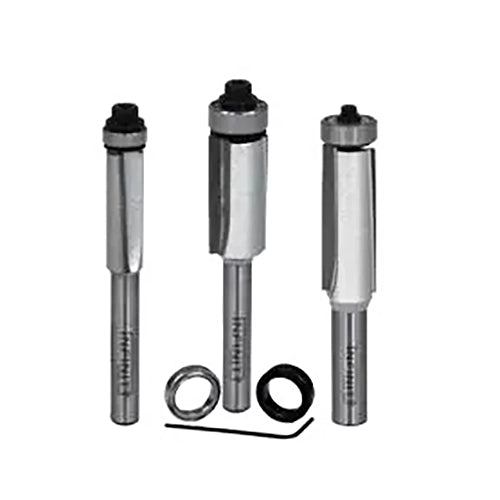

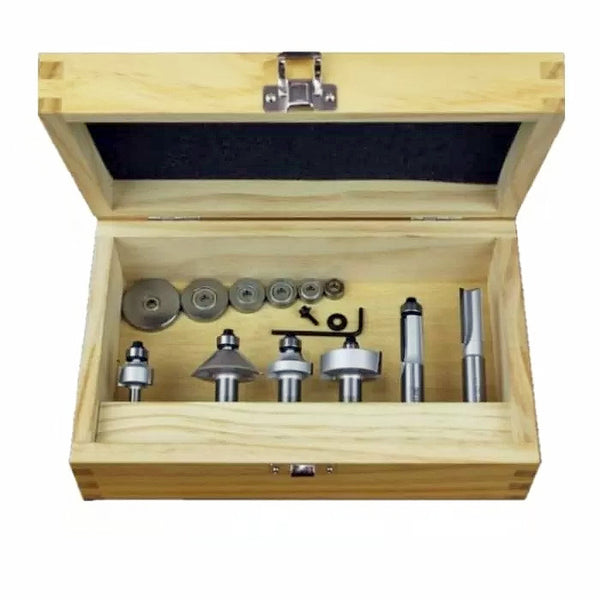

The Multi Bearing Pattern Router Bit Set includes interchangeable bearings of different diameters, allowing you to offset the cut slightly from the template for pattern-following work at different reference depths. Laminate trim bits are also available in 1/4" shank for smaller trim routers commonly used in countertop work.

Flush trim bits pair naturally with router jigs and guides and complement the full range of carbide router bits. For complete routing setups including tables and lifts, see routing tools and accessories.

Frequently Asked Questions

What is a flush trim router bit?

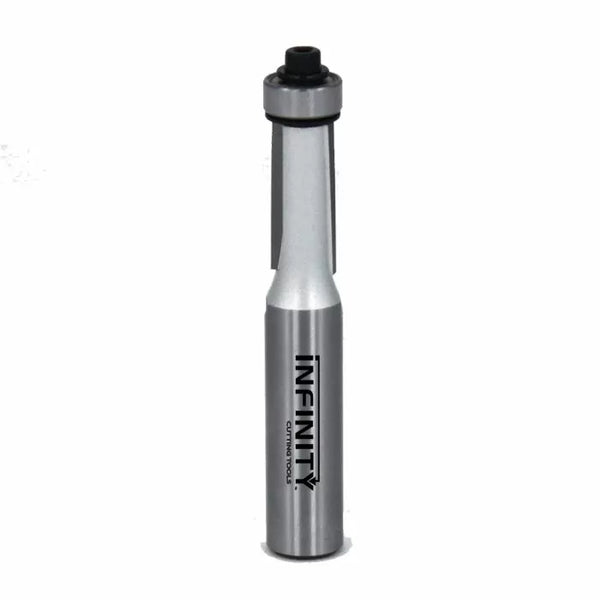

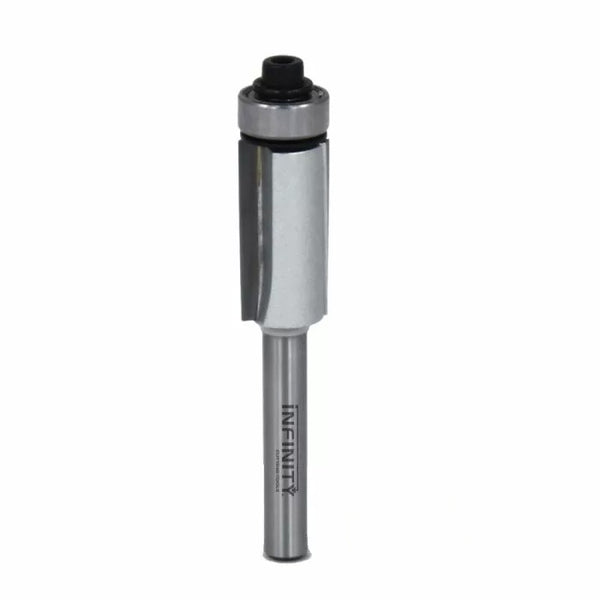

A flush trim bit has a pilot bearing that matches the diameter of the cutting edges. The bearing rides along a template or the edge of a reference surface while the bit cuts the workpiece flush to that same line, producing a perfect match between the two surfaces.

What is the difference between a flush trim bit and a pattern bit?

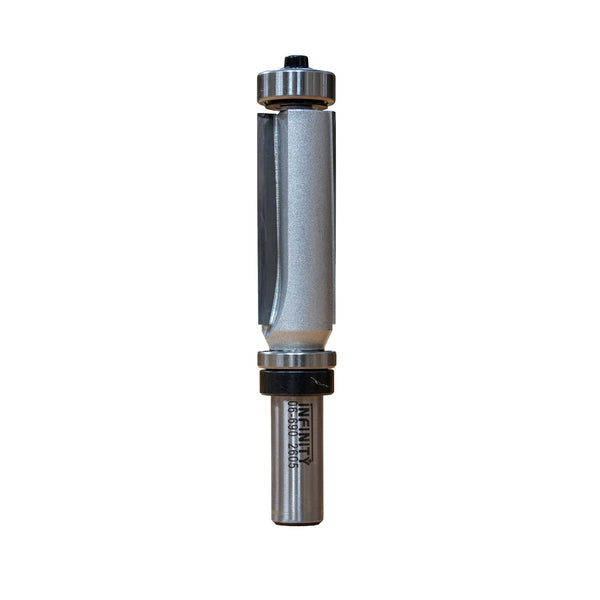

A flush trim bit typically has the pilot bearing at the tip (bottom), allowing it to follow a template fixed below the workpiece. A pattern bit has the bearing at the top (shank end) and follows a template clamped on top of the workpiece. The Multi Bearing Pattern Router Bit Set provides both bearing positions in one set.

What is a downshear flush trim bit and when should I use it?

A downshear bit has cutting edges ground so the shear angle directs cutting forces downward into the workpiece surface. This prevents the top veneer or face grain from lifting or tearing during the cut. Use the downshear flush trim bits when trimming veneered plywood, MDF-backed veneer, or any panel where the top surface is delicate.

What are Mega Flush Trim bits and how are they different from standard flush trim bits?

Mega Flush Trim bits have a significantly longer cutting length than standard flush trim bits. This allows them to trim thick laminate, deep template passes, or tall solid wood edges in a single pass without repositioning the bit or cutting in multiple stages. See the Mega Flush Trim Router Bits.

Can I use flush trim bits for laminate countertop work?

Yes. Laminate trim bits in 1/4" shank are specifically designed for this application, fitting the small laminate trim routers commonly used in countertop fabrication. Larger 1/2" shank flush trim bits can also be used in a standard router for trimming thick laminate. See the full flush trim collection for all available sizes.

What shank size should I choose for flush trim bits?

Choose 1/2" shank for larger trim routers and router table use — the added rigidity reduces chatter at longer cutting lengths. Use 1/4" shank bits in palm routers and small laminate trim routers that do not accept a 1/2" collet.

Can flush trim bits be used for car audio speaker installation?

Yes. Infinity Tools offers dedicated car audio flush trim bits, including the Car Audio Flush Trim Router Bit and a Super version with 4 interchangeable bearings, designed for trimming speaker rings and panel cutouts.

What router do I need to use flush trim bits effectively?

Any router with a collet matching the bit's shank size will work. For heavy-duty template routing with large flush trim bits, a mid-to-full-size router provides the power and stability needed. Browse routers for compatible options.

How do I prevent burning when using flush trim bits?

Burning is most often caused by dwelling in one spot, a dull cutting edge, or too slow a feed rate. Keep the router moving steadily, use a sharp bit, and avoid backing up into the cut. Visit the Infinity Tools blog for troubleshooting guides on routing burn marks.

Are flush trim bits suitable for beginners?

Yes. Flush trim bits are among the most beginner-friendly router bits because the bearing does the guiding work — you simply need to maintain contact between the bearing and the template or reference edge. Start with a standard-length flush trim bit before moving to the longer Mega series.
