Insert-Pro Carbide Shaper Cutters

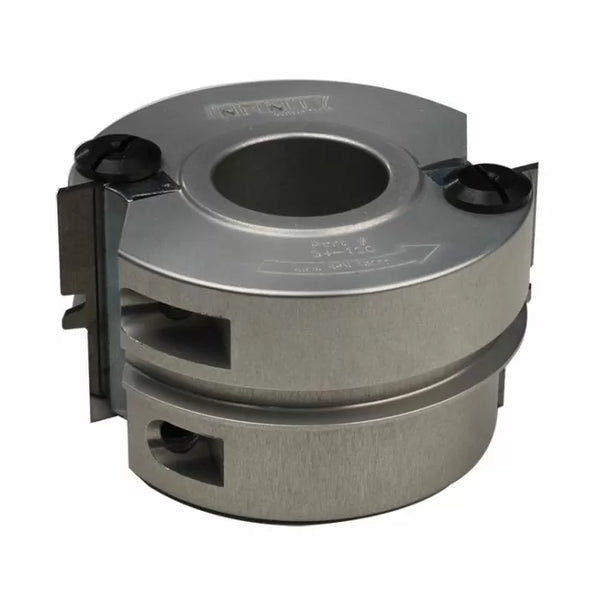

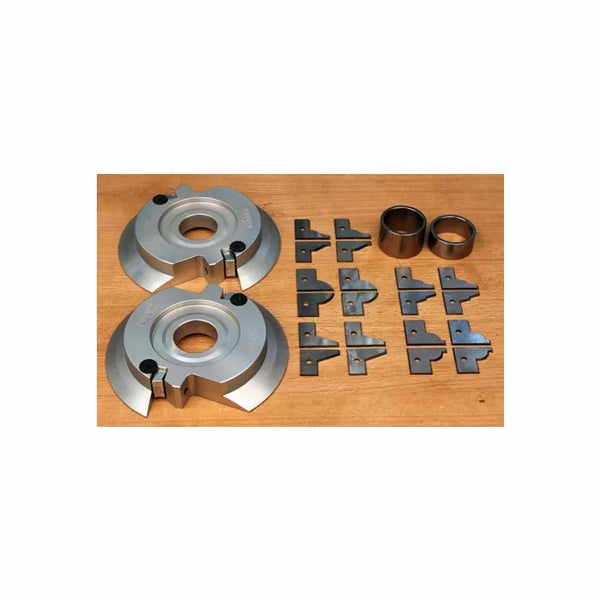

The Insert-Pro system uses a precision-machined cutter body that accepts replaceable carbide knives secured with locking screws. When the cutting edges wear, the knives are removed and replaced without discarding the cutter body. This reduces the cost per sharpening cycle compared to solid shaper cutters and gives the system a much longer total service life.

Insert-Pro shaper cutters from Infinity are designed with a 1-1/4" bore, which is the standard for most production shapers. Reducer bushings like the Infinity T-Bushings for 1-1/4" Bore Shaper Cutters are available to adapt these cutters to smaller spindle sizes if needed.

Yes. The Exterior Door Making Kit for Insert-Pro Shaper Cutter Sets provides the profile components needed for exterior door construction, including the weather-sealing profile geometry appropriate for thicker exterior door stock.

The Insert-Pro 45-Degree Lock Miter Cutter creates an interlocking joint on two mating pieces that, when assembled at a 90-degree corner, creates a mechanical lock plus a large glue surface. It is commonly used for drawer box construction, cabinet side panels, and boxes where a strong, self-aligning corner joint is needed without a router table dovetail jig.

Raised panel profiles are described by their cross-section shape: cove, ogee, flat, and combinations thereof. Match the existing door's panel profile by measuring the profile's height and shape at the panel edge with a profile gauge or by tracing it on paper. The Infinity Insert-Pro Raised Panel Cutters are available in multiple profiles — visit the product pages to compare profile cross-section drawings.

Rub collars are smooth-bearing discs that mount above or below the cutter body and ride against the workpiece edge or a fence to control the depth of profile cut without relying on a starting pin. They are standard equipment for profile cuts where a pilot bearing provides guidance, and they allow you to use a split fence for through-cuts with the full profile exposed.

Carbide knife life depends on material type, feed rate, and cutting depth. In solid hardwood, Insert-Pro knives typically remain sharp for a substantial production run before showing signs of dulling (burn marks, raised grain, or rougher surfaces). MDF and particleboard accelerate wear significantly due to their abrasive adhesive content. Replacement knives are available individually so you replace only what is needed.

Both systems use carbide cutting edges on a reusable body. The Insert-Pro system is designed for woodworkers who run specific profiles repeatedly and want the long-term economy of replaceable knives. The Shape-Up cutters use a different body and knife architecture — visit both collection pages to compare profiles and configurations for your specific application.

Shapers are powerful, high-speed machines that require proper training, correct spindle speed selection, secure workpiece feeding, and use of appropriate guards and starting pins. Beginners should study shaper safety techniques thoroughly before use. The Infinity Tools learning center includes guidance on shaper setup and safe operation. Contact the team with questions about the right cutter for a specific application.
