Mortise & Tenon Joinery

Mortise & Tenon Joinery Tools – Router Bits, Jigs & Marking Gauges

The mortise-and-tenon joint is one of woodworking's oldest and strongest connections, used in chair legs, door frames, table bases, and cabinet carcasses. Cutting accurate mortise-and-tenon joints requires precise layout tools, the right cutting approach, and reliable jigs that produce consistent results across multiple workpieces. Infinity Tools carries a complete selection of mortising router bits, dado jigs, marking gauges, and specialty systems to support every method.

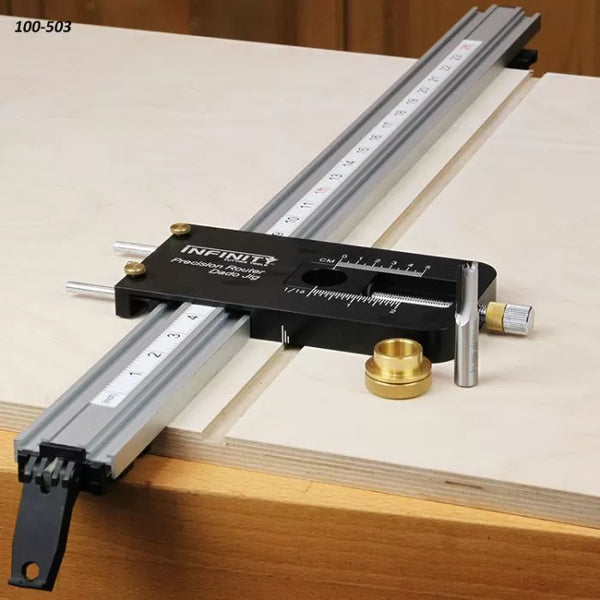

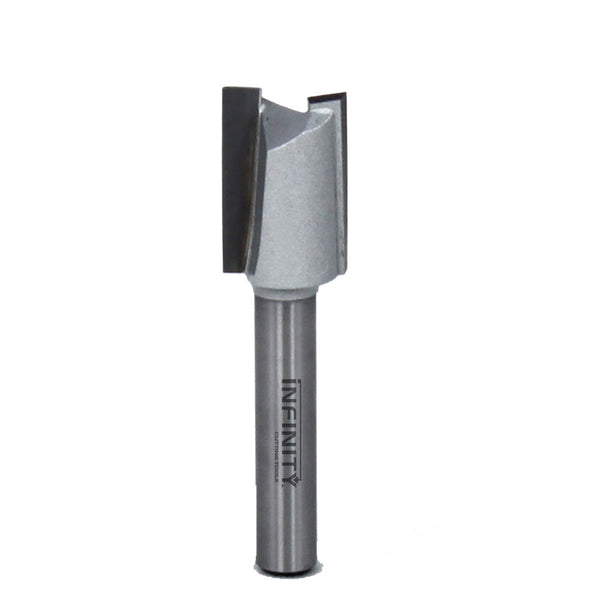

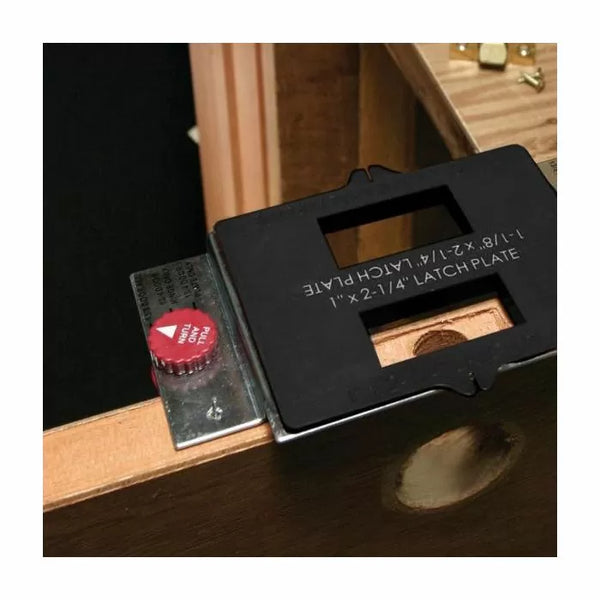

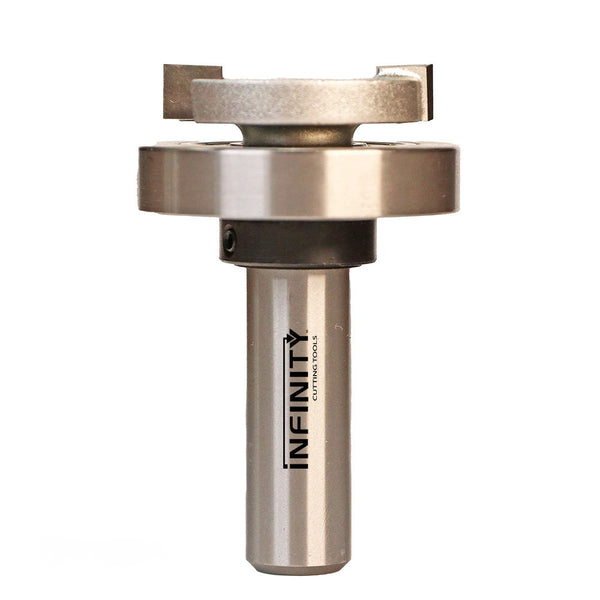

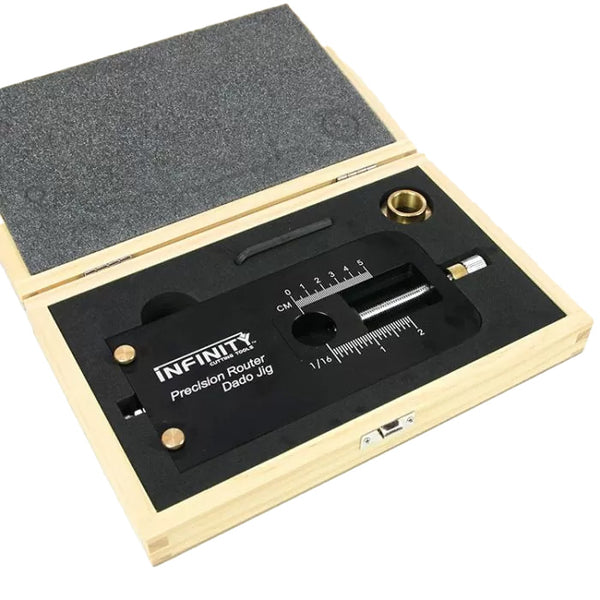

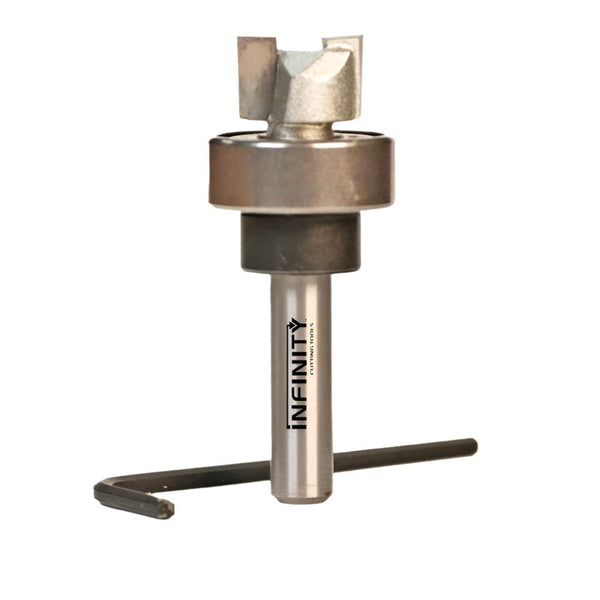

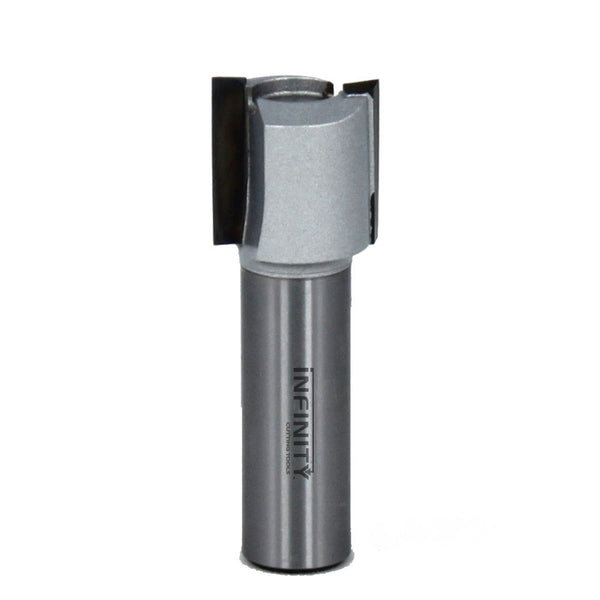

Infinity Tools' own mortise-and-tenon router bits are available in both 1/4" shank and 1/2" shank versions, with bearing-equipped variants for pattern-following cuts. Pair them with the Precision Router Dado Jig for guided, repeatable mortise routing in solid wood. For door hinge mortises, the Milescraft Door Mortise Kit provides a router template sized for standard door hinge leaf dimensions.

Marking Gauges & Complete Dado Sets

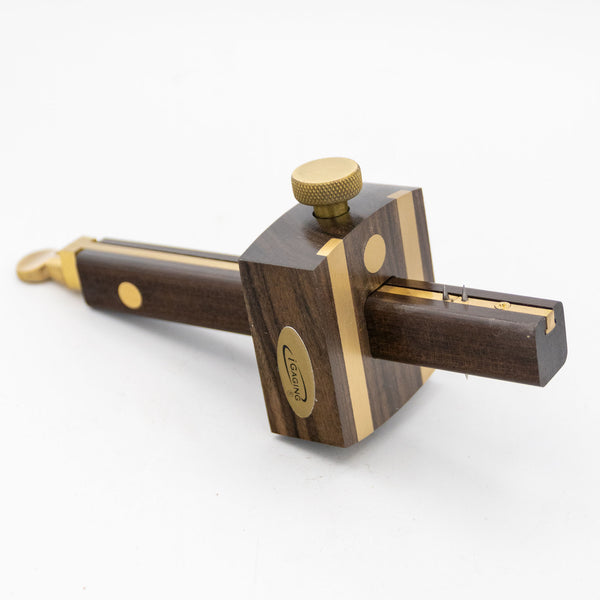

Accurate layout is essential before any cut. The iGaging Ebony Mortise Gauge scribes both mortise wall lines in a single pass, while the iGaging Wheel Marking Mortise Depth Gauge marks consistent depth lines around the workpiece. For dado-based tenon cutting on the table saw, the Infinity Tools Pro Grip 4-Piece Master Dado Set provides flat-bottomed cuts needed for accurate tenon cheeks. Browse Cabinetry & Joinery and Marking Gauges for related tools, and see the Kreg Tool Joinery Systems collection for loose-tenon alternatives.

Router bits available in 1/4" and 1/2" shank sizes with and without bearings
Jigs provide repeatable mortise location across multiple identical workpieces
Door mortise kits size precisely for standard hinge leaf dimensions

Frequently Asked Questions

What is the strongest way to cut a mortise-and-tenon joint?

A well-fitted mortise-and-tenon joint cut with sharp tooling and accurate layout is one of the strongest joints in woodworking when glued with appropriate adhesive. Consistent wall thickness, flat bottoms, and square shoulders are the key dimensional requirements for a tight, strong joint.

Can I cut mortise-and-tenon joints with a router?

Yes. A plunge router with a spiral upcut bit or a dedicated mortise-and-tenon router bit—such as the Infinity Tools 1/2" Shank Mortise-Tenon Router Bits—cuts clean, flat-bottomed mortises quickly and accurately. A router dado jig guides repeatable mortise placement.

What is the difference between a 1/4" and 1/2" shank mortise-tenon router bit?

A 1/2" shank provides greater rigidity and reduces vibration during heavy mortising cuts in hardwood. A 1/4" shank bit is suitable for lighter-duty routers and portable trim applications. For full-size mortise-and-tenon work in hardwood, 1/2" shank bits are the preferred choice.

What tools do I need to lay out mortise-and-tenon joints?

Mortise-and-tenon layout requires a mortise gauge to scribe the joint width, a marking knife for shoulder lines, and a square to transfer lines around the workpiece. The iGaging Ebony Mortise Gauge and Wheel Marking Mortise Depth Gauge cover both aspects of layout.

What is the Milescraft Door Mortise Kit used for?

The Milescraft Door Mortise Kit is a router template system sized to standard door hinge leaf dimensions. It guides the router to cut precise hinge recesses in both the door edge and door jamb, ensuring a flush hinge installation without measuring each mortise individually.

Can a dado blade set be used to cut tenon cheeks?

Yes. A stacked dado set is one of the most efficient ways to cut tenon cheeks on the table saw. The Infinity Tools Pro Grip Master Dado Set cuts flat-bottomed dados and rabbets, making it well-suited for removing tenon cheek material in multiple consistent passes.

Are there loose-tenon alternatives to cutting traditional mortise-and-tenon joints?

Yes. The Kreg MortiseMate system creates floating loose-tenon joints by routing matching mortises in both workpieces and inserting a pre-made tenon. This approach produces a strong, glue-ready joint without the need to cut a tenon on the workpiece itself.

How do mortise-and-tenon joints compare to pocket-hole joinery?

Mortise-and-tenon joints are stronger and more durable for load-bearing applications like chair legs and table bases. Pocket-hole joinery is faster and suitable for face frames, cabinet boxes, and furniture where glue surface and joint geometry differ. Both have a place in a well-equipped shop.

Does Infinity Tools offer free shipping on mortise-and-tenon tools?

Free shipping is available on most orders over the qualifying threshold. See the shipping policies page for current details.

Where can I learn mortise-and-tenon joint techniques?

The Infinity Tools learning center covers joinery methods including hand-cut and router-cut mortise-and-tenon joints. The Cabinetry & Joinery collection also links to related hardware and installation tools.
