Grooving Router Bits for Dadoes, Slots & Rabbets

Carbide Grooving Router Bits for Clean Dadoes, Slots & Rabbets

Grooving router bits are the workhorses of the cabinetmaker's shop, cutting the precise channels that lock shelves in place, seat drawer bottoms, and create tight-fitting tongue-and-groove panels. This collection covers everything from straight flute bits for wide dadoes to roundnose bits that carve curved troughs for decorative inlays and serving trays.

Infinity Tools grooving bits are ground from micrograin carbide and balanced for smooth, chatter-free cuts in hardwoods, softwoods, MDF, and plywood. Whether you're plowing a 3/4" shelf dado or shaping a bowl recess, consistent depth of cut depends on carbide that holds its edge across a full production run.

Roundnose & Bowl Tray Bits

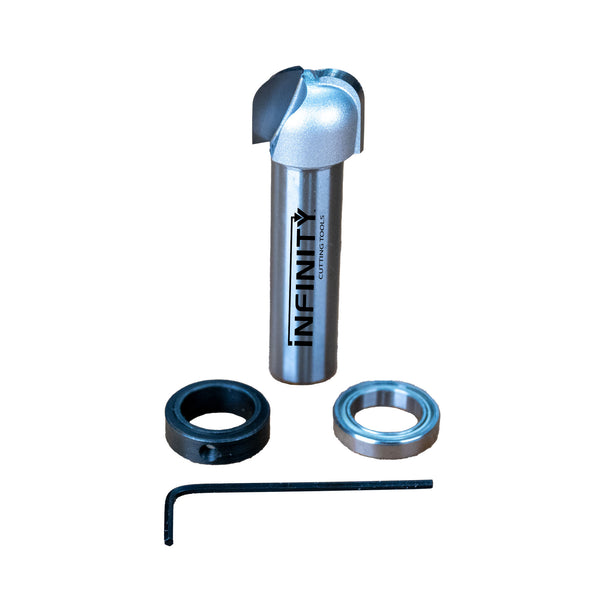

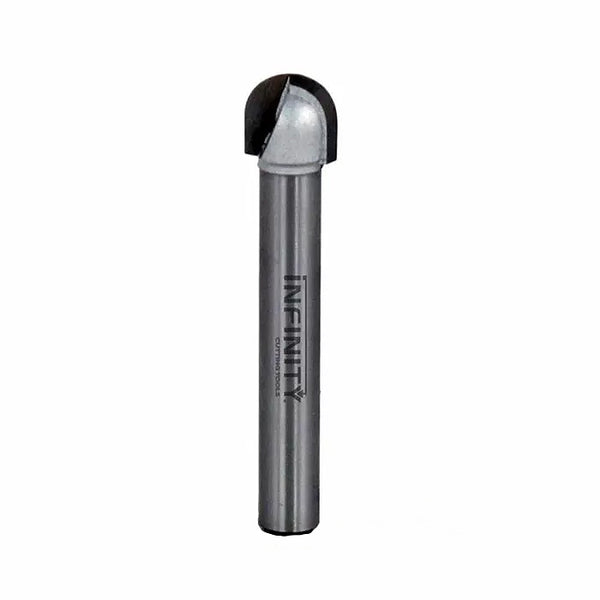

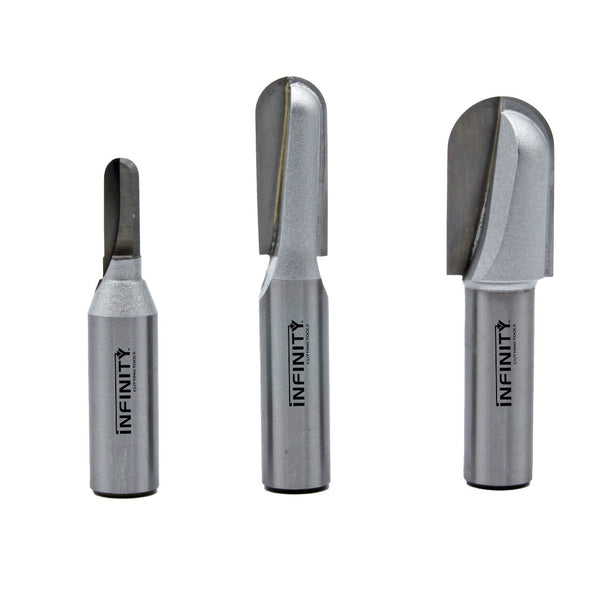

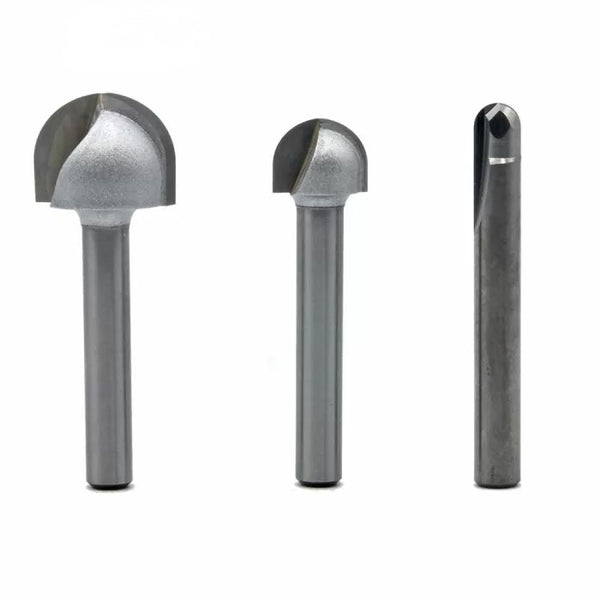

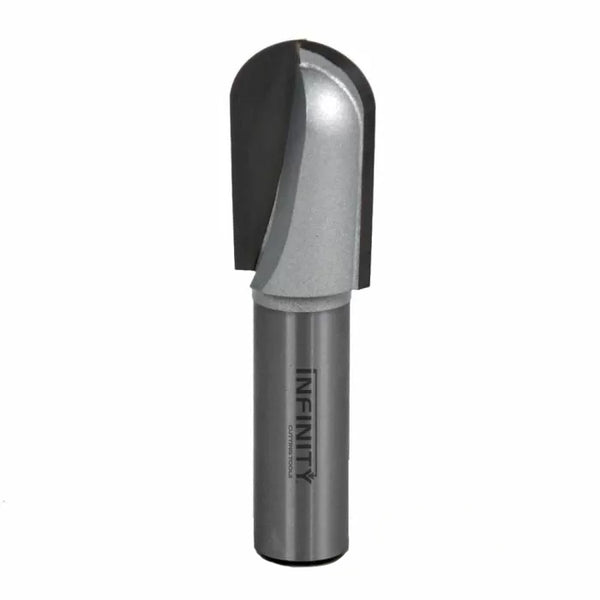

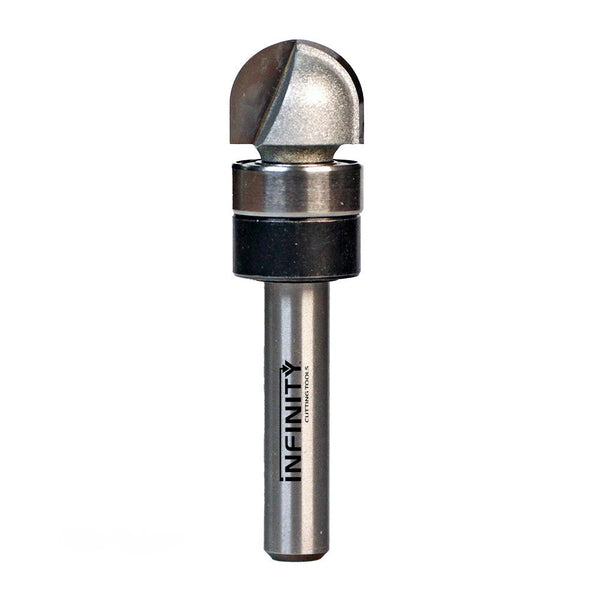

Roundnose bits produce a semicircular groove suited to fluted moldings, cove channels, and router-carved lettering. Bowl tray bits, including deep-reach variants with a bottom-bearing design, let you hollow trays and serving boards with a plunge-and-sweep technique while the bearing controls the cut boundary. Pair a 1/2-shank roundnose router bit set with a router table fence for repeatable, parallel fluting.

For a complete router setup, explore our full range of carbide router bits & router bit sets, browse router jigs & guides for accurate groove placement, and see the broader routing collection for tables, lifts, and accessories. If you need complementary joint work, the joinery router bits collection covers dadoes, rabbets, mortises, and box joints.

Frequently Asked Questions

What is a grooving router bit used for?

A grooving router bit cuts a channel or slot into a wood surface. Common applications include dadoes for shelf installation, grooves for drawer bottoms, fluting on cabinet panels, and curved troughs for bowl or tray carving. The specific profile — straight, roundnose, or bowl — determines the shape of the resulting groove.

What's the difference between a dado and a groove in woodworking?

A dado runs across the grain of the board, while a groove runs with the grain. Both are rectangular channels cut to accept a mating piece, such as a shelf or drawer bottom. The same straight or spiral bit can cut both; only the orientation of the cut changes.

Should I use a 1/4-inch or 1/2-inch shank grooving bit?

A 1/2-inch shank is preferable for grooving work because the larger diameter reduces vibration and deflection, producing a straighter, cleaner channel. Reserve 1/4-inch shank bits for light-duty trimmers or when your router collet only accepts that size. See the carbide router bits collection for both shank options.

Can I use a roundnose bit to cut a straight dado?

No. A roundnose bit produces a curved bottom profile, not a flat one. For a flat-bottomed dado or groove, use a straight or spiral upcut bit. Roundnose bits are intended for decorative fluting, cove grooves, and bowl tray routing.

What is a bowl tray router bit and how does it work?

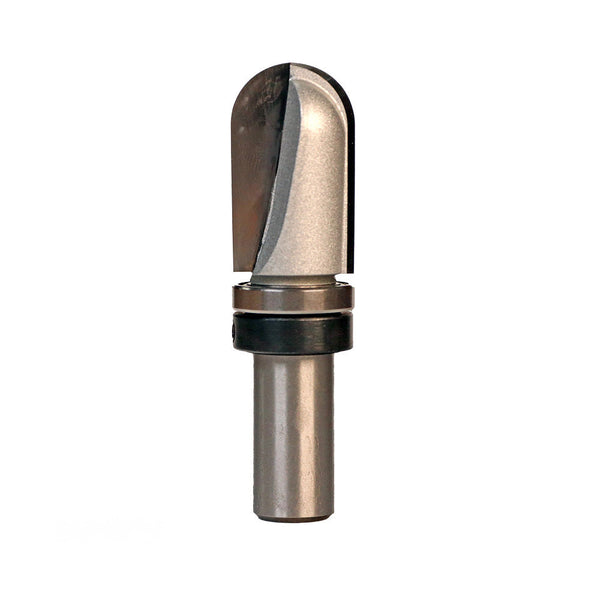

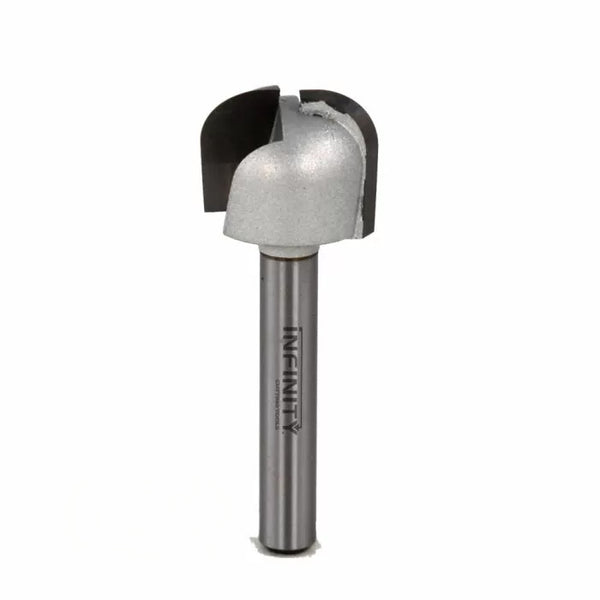

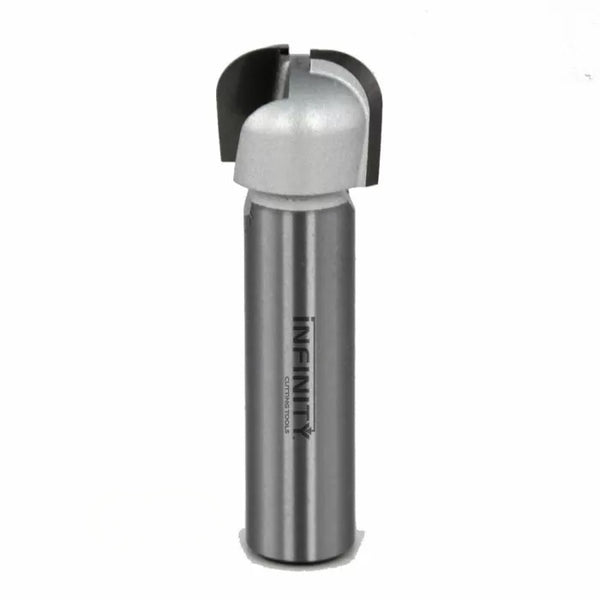

A bowl tray bit is a large-diameter roundnose bit, often fitted with a bottom-mounted bearing, used to rout the interior recess of serving trays and shallow bowls. The bearing rides against a template or the workpiece edge to control the cut width, while multiple overlapping passes remove material across the floor of the tray.

How deep can I cut in a single router pass when grooving?

The safe maximum depth per pass depends on bit diameter, wood species, and router horsepower. As a general rule, limit each pass to no more than half the cutting diameter of the bit. Make multiple shallow passes rather than one deep plunge to avoid burning the wood and overloading the router motor.

Do grooving bits work in a handheld router as well as a router table?

Yes. Straight and roundnose grooving bits can be used both handheld and table-mounted. A router table with a fence gives better control for long, continuous grooves, while a handheld router with an edge guide is practical for dadoes that span a wide panel. Explore router jigs & guides for accessories that improve accuracy in both setups.

Which grooving bit is best for cutting grooves in plywood?

A spiral upcut carbide bit produces the cleanest groove in plywood because the shearing action reduces tear-out at the surface veneers. For cross-grain dadoes in plywood, score the cut line with a sharp chisel or marking knife before routing to prevent chipout at the edges.

How do I maintain my grooving router bits?

After each use, remove pitch and resin buildup with a dedicated bit-cleaning solution and a soft brush, then dry thoroughly before storage. Store bits standing upright in a foam-lined case or router bit storage box to protect the carbide edges. Inspect the cutting edges before each session; dull carbide produces burning and rough groove walls.

Does Infinity Tools offer a price-match guarantee on router bits?

Yes. Infinity Tools offers a price-match policy so you can shop with confidence. Details are available on the price-matching page.
