Flush Trim Router Bits

Flush Trim Router Bits for Pattern Routing, Templates & Laminate Work

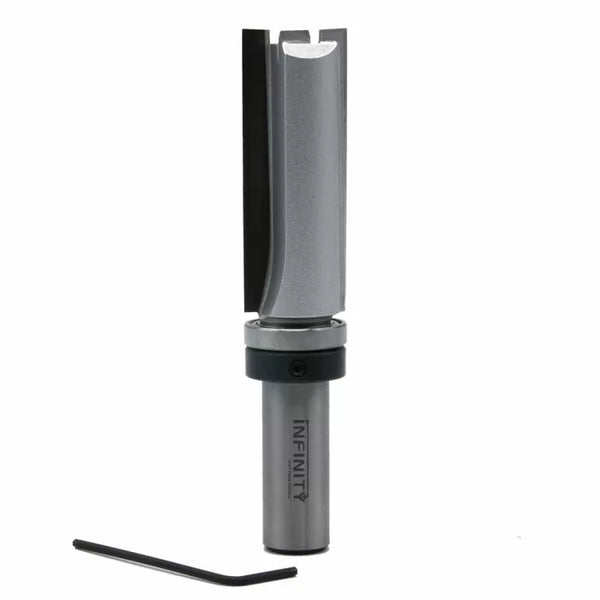

Flush trim router bits use a guide bearing to follow a template or existing edge while the cutting flutes shave the workpiece to exact flush. They are essential for template routing, duplicating parts, trimming edge banding, and finishing laminate installations. Infinity Tools offers one of the widest selections of flush trim configurations available, covering standard, spiral, compression, and downshear geometries in both 1/4" and 1/2" shank sizes.

The Mega Flush Trim bits in 1/2" shank feature extra cutting length for trimming thick stock and deep templates in a single pass. For compact routers and laminate trimmers, the 1/4" Mini Mega Flush Trim bits deliver the same bearing-guided precision in a smaller package.

Spiral, Compression, and Downshear Flush Trim Options

Spiral flush trim bits cut more smoothly than straight bits in most materials, reducing tearout and heat buildup during long template runs. Solid carbide compression flush trim bits use opposing up-cut and down-cut spirals that shear cleanly from both faces simultaneously—ideal for veneered panels, melamine, and double-sided laminate where tearout on either face is unacceptable. Downshear versions in 1/2" shank and 1/4" shank press fibers down during the cut, producing a polished top surface with minimal fuzz or chip-out.

Top-bearing and bottom-bearing configurations for different template setups
Solid carbide spiral options for harder, denser materials
Compression geometry for double-faced laminates and veneered plywood
Multi-bearing sets for maximum versatility in one package

For multi-position setups, the 1/2" multi-bearing pattern router bit set lets you switch between top and bottom bearing positions without changing bits. Browse all options and find technique guides at the Infinity Tools learning center.

Frequently Asked Questions

What is a flush trim router bit and how does it work?

A flush trim bit has a guide bearingeither at the top or bottom of the cutting flutesthat rides against a template or an existing edge. The bearing controls lateral position while the cutter trims the workpiece exactly flush with that reference surface.

What is the difference between a top-bearing and a bottom-bearing flush trim bit?

A top-bearing bit places the bearing above the flutes, so the template is positioned on top of the workpiece. A bottom-bearing bit places the bearing below the flutes, with the template beneath. The choice depends on which face of the workpiece you want to reference and how your template is mounted.

When should I use a compression flush trim bit instead of a standard straight bit?

Use a compression flush trim bit when working with veneered plywood, melamine, or double-sided laminate where tearout on either the top or bottom face would be visible. The opposing spiral geometry shears cleanly from both directions simultaneously.

What does a downshear flush trim bit do differently from a straight bit?

A downshear helix pushes wood fibers down during the cut rather than lifting them, producing a cleaner, fuzz-free top surface. This is valuable when routing solid wood veneers, finished surfaces, or any material where top-face quality matters.

What is the Mega Flush Trim bit and what makes it useful?

The Mega Flush Trim bit has an extended cutting length compared to standard flush trim bits, allowing it to trim thick stock or follow deep templates in a single router pass without repositioning.

Can I use flush trim bits in a handheld router or only in a table?

Flush trim bits work in both a handheld router and a router table. When using a handheld router, a bottom-bearing bit is usually more practical so the template can lie flat beneath the workpiece. In a table setup, a top-bearing bit lets you guide work against a template clamped above.

What shank size should I choose for flush trim bits?

For most router tables and full-size handheld routers, a 1/2" shank provides better vibration damping and rigidity. For laminate trimmers and compact routers, the 1/4" shank Mini Mega Flush Trim bits are the correct fit.

What is a solid carbide spiral flush trim bit and when is it preferred over HSS?

Solid carbide spiral bits are ground from a single piece of carbide rather than brazed tips, providing maximum rigidity and a sharper cutting edge. They excel in dense hardwoods, MDF, and abrasive composites where brazed carbide bits may deflect or chip. See the 1/2" solid carbide spiral flush trim options.

Does Infinity Tools offer a price match on flush trim router bits?

Yes. Infinity Tools will match competitive prices on router bits—see the price-matching page for terms and instructions.

Where can I find guidance on template routing and flush trim technique?

The Infinity Tools learning center has articles on router bit selection, template routing setups, and avoiding tearout in pattern-routing work.
