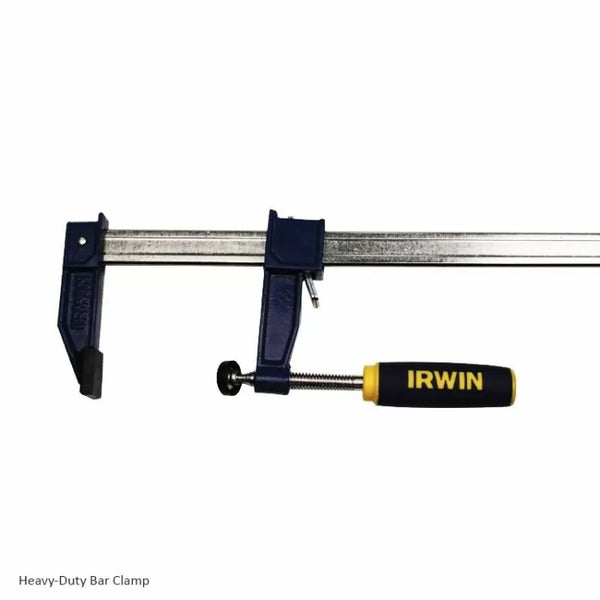

A bar clamp uses a fixed-length steel bar as its spine, which limits maximum opening capacity. A pipe clamp uses separate clamp heads that thread onto standard pipe, so you can choose any pipe length to achieve the opening you need—making pipe clamps far more flexible for large glue-ups.

A general guideline is to space clamps every 8 to 12 inches along the joint for most hardwoods, alternating top and bottom to counteract panel bowing. A 48-inch tabletop panel typically requires five to seven clamps for adequate pressure distribution.

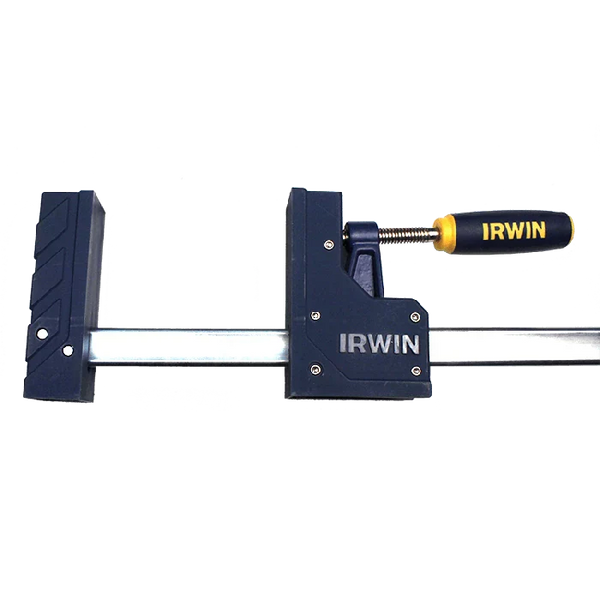

A parallel jaw clamp has jaws that remain parallel to each other throughout the clamping range, which applies pressure perpendicular to the bar and prevents the panel from bowing upward. Traditional F-clamps tend to rack under load, introducing a downward force that can cup a glue-up panel.

Metal clamp pads can dent or mar soft wood surfaces. Always place protective pads, scrap wood cauls, or cork between the clamp jaws and your workpiece. Cauls also help distribute clamping pressure more evenly across the joint line.

Most PVA wood glues require moderate, even pressure—enough to close the joint and produce a thin, consistent glue squeeze-out line. Excessive pressure can starve a joint of glue by squeezing it all out. Follow the adhesive manufacturer's recommendations for optimal results.

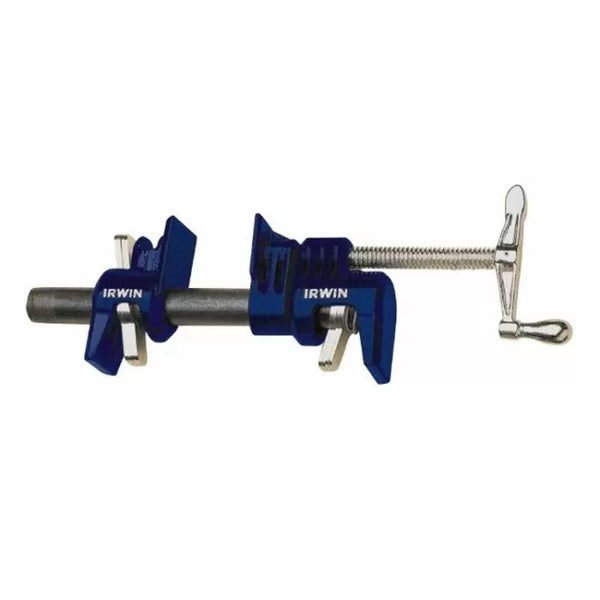

Pipe clamp heads are sold to fit a specific pipe diameter, most commonly 3/4-inch or 1/2-inch black iron pipe. Always match the clamp heads to the correct pipe size. Standard black pipe is readily available at hardware stores and can be cut to any length you need.

An auto-adjust bar clamp or a right-angle clamp works well for holding face-frame pieces square during assembly. Pocket-hole joinery users often prefer clamps with flat jaws that sit flush to the workpiece without rocking, keeping the joint aligned while driving screws.

Keep screw threads and sliding bars clean and lightly oiled to prevent rust and ensure smooth operation. Wipe dried glue off the jaws promptly—cured PVA can be difficult to remove and may cause the pad to stick to your next workpiece.

No. Pipe clamp heads are sold without pipe so you can choose the length. Use standard 3/4" black iron pipe from any hardware store, and buy a few lengths so you can swap heads between short and long jobs.

Both work. Pipe clamps are the budget choice and can be made any length. Parallel jaw clamps such as the Bessey K Body REVO Jr cost more, but their jaws stay parallel and their wide faces spread pressure over a larger area, which makes it easier to keep a wide panel flat.
