A setup block is a machined reference tool sized to the specific geometry of a router bit set. To use it, place it against the bit while the router is unplugged, adjust bit height until the cutting edge aligns with the reference surface on the block, then lock the height. The block removes guesswork and eliminates the need for repeated test cuts.

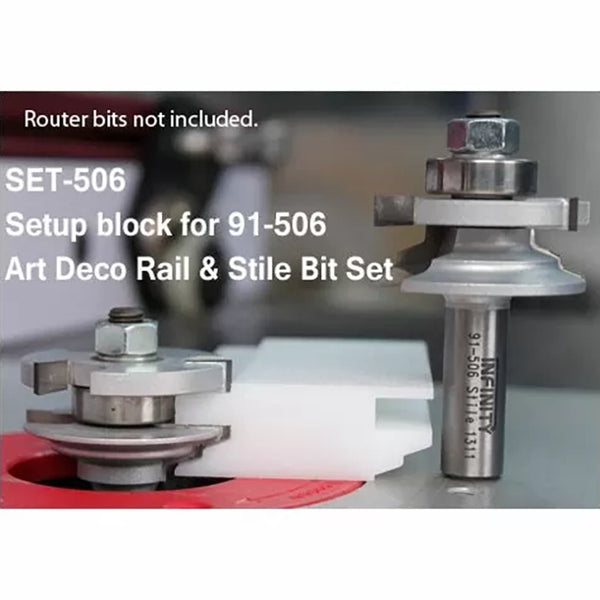

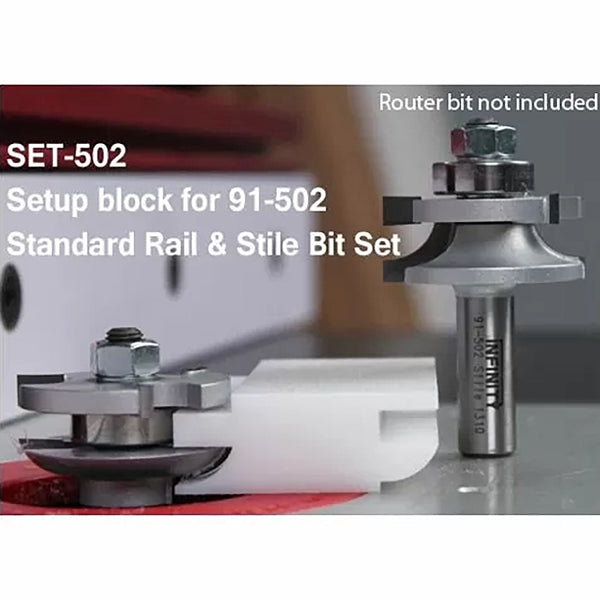

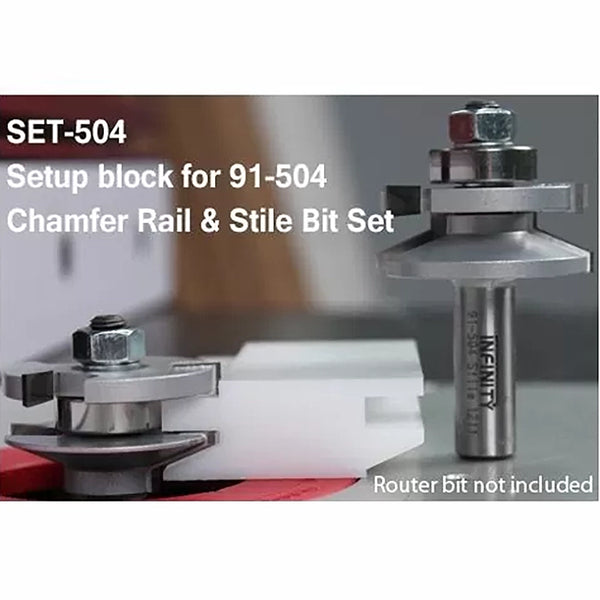

Yes. Each rail stile profile has a unique bit height requirement, so the setup blocks are profile-specific. Using the wrong block — or no block at all — risks a misaligned cope-and-stick joint where the profiles don't flush. Infinity Tools offers individual blocks for each rail stile set they manufacture.

The lock miter bit requires two simultaneous settings: precise bit height so the 45-degree cut centers on the stock thickness, and precise fence position so the horizontal miter face is flush. Both settings are interdependent, meaning adjusting one affects the other. The Lock Miter Master Jig solves both simultaneously.

Yes. Setup blocks work with any height-adjustment mechanism — manual collet adjustment, router table lift, or plunge-style router. The block simply references the bit geometry; how you reach and lock the height is up to your equipment. A router lift makes micro-adjustments easier after the initial block setting.

The coping sled setup block positions the router table fence at the correct distance from the bit for the cope cut on rail ends in rail-and-stile door making. Without this reference, the cope depth must be estimated and adjusted through test cuts, which wastes time and material.

Infinity Tools setup blocks are machined to the specific geometry of Infinity Tools bit sets. They may not produce accurate results with differently dimensioned bits from other manufacturers, even if the profile name is the same. For third-party bits, consult the manufacturer's documentation for bit height specifications.

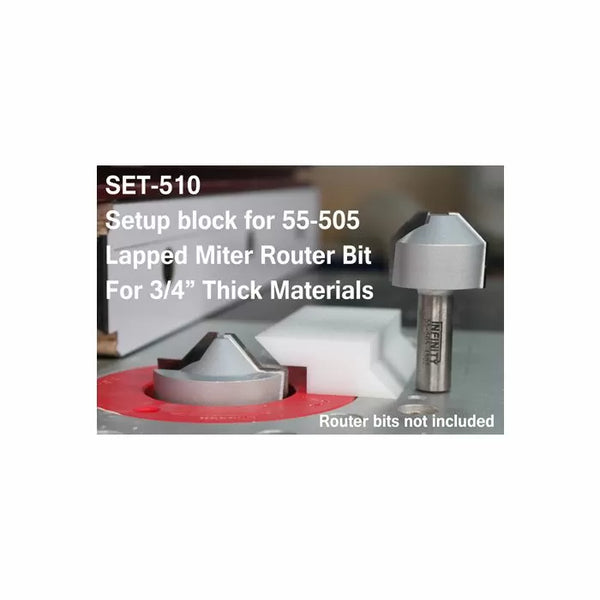

A lapped miter joint is a 45-degree overlap (not an interlocking lock) and the bit geometry is simpler. The setup block for the lapped miter router bit set is sized for 3/4-inch material thickness and sets the bit height so the miter overlaps correctly at the corner.

Manual setup of a lock miter bit through test cuts and incremental adjustments typically takes 15 to 30 minutes and consumes several scrap pieces. Using the Lock Miter Master Jig reduces initial setup to under 5 minutes, with at most one test cut for final confirmation.

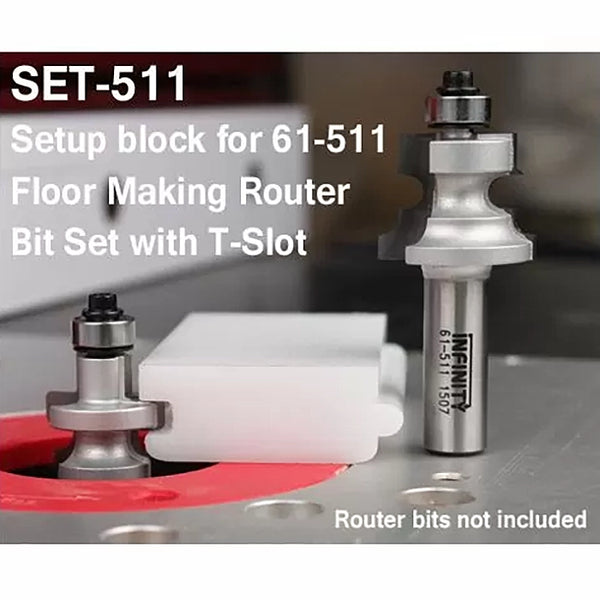

Yes. The setup block for the flooring router bit set aligns the bit height so the tongue and groove profiles interlock at the correct depth, ensuring boards lie flat without rocking or gaps at the joint.
