Herrajes y rieles en T

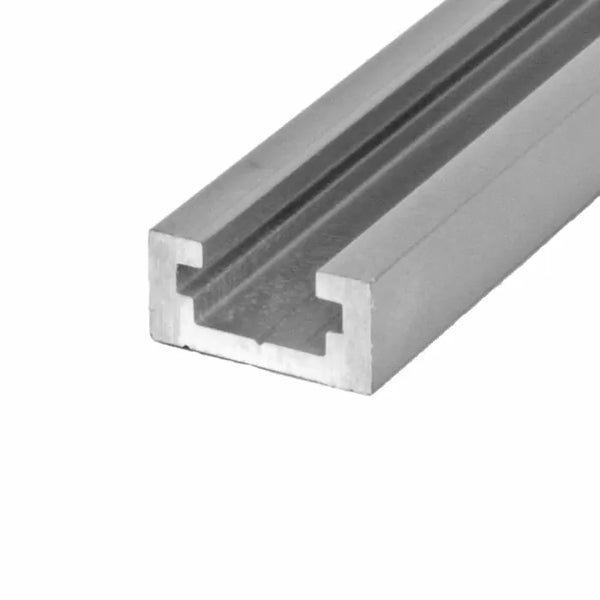

Standard aluminum T-track accepts either 1/4"-20 hex bolts or 5/16" T-bolts, depending on the track design. The Universal T-Track in our collection accepts both sizes, giving maximum flexibility with different accessories and clamp hardware.

Yes. Aluminum T-track can be cut to any length using a hacksaw, miter saw with a non-ferrous metal blade, or a jigsaw with a metal cutting blade. Deburr the cut end with a file or sandpaper for a clean, snag-free finish.

The Microjig Matchfit system uses a 14° dovetail slot routed directly into MDF, plywood, or solid wood using the Matchfit Dovetail Router Bit. Matchfit clamps self-lock in the dovetail slot under clamping load — no T-bolt required. The system is more compact than T-track and integrates cleanly into shop-made jigs and work surfaces.

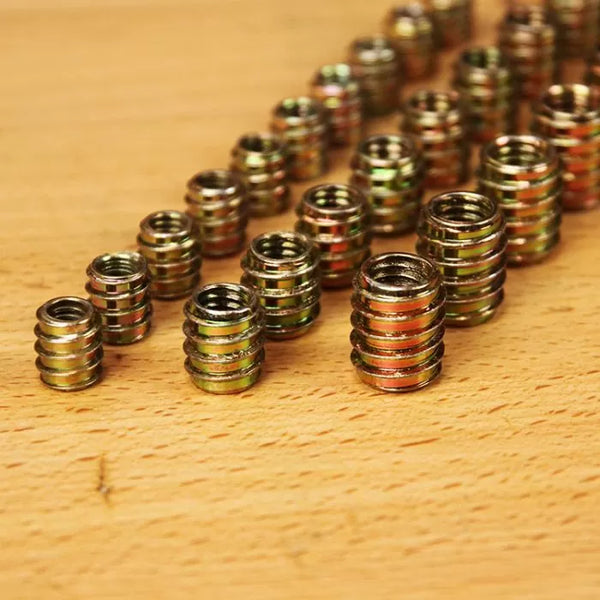

Threaded inserts are installed into wood or MDF to create a permanent, reusable threaded hole. They allow machine screws or hex bolts to be installed and removed many times without stripping the surrounding wood — essential in jigs and fixtures that are assembled and disassembled repeatedly.

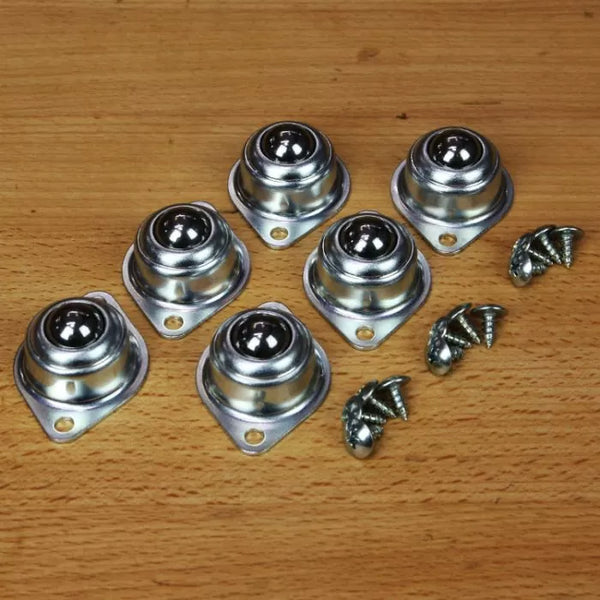

The Roller Ball Set provides low-friction support for sheet goods and long boards as they exit the table saw, planer, or jointer. The balls rotate in any direction, allowing the workpiece to slide smoothly off the table without the user having to support the weight of a long board freehand.

Rout or dado a groove the exact width and depth of the T-track, then glue or screw the track into the groove. Many T-tracks have countersunk holes for flat-head screws. Ensure the track sits flush with or slightly below the surface so workpieces slide over it without catching.

Yes. A router table fence routed with the Matchfit dovetail slot accepts Matchfit Dovetail Clamps anywhere along its length, making it easy to attach featherboards, stops, and guard accessories. The Microjig ZeroPlay 360 Sled Kit is a complete sled system built around the Matchfit dovetail hardware.

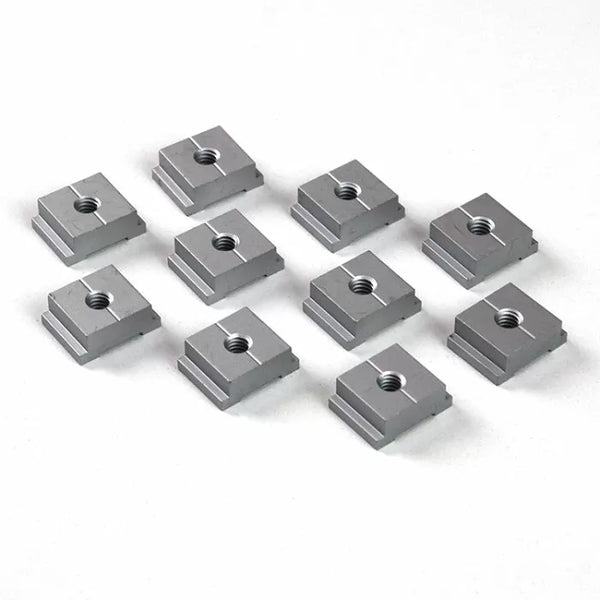

The 149-Piece Hardware Kit includes an assortment of T-slot bolts, T-slot nuts, hand knobs, and related hardware in the most commonly used sizes for shop jigs and fixtures. It is a convenient starter set for outfitting a new jig-building workshop.

Yes. Infinity Tools offers price matching on identical items from qualifying competitors. Visit our price-matching page to learn the eligibility requirements and submit a request.

Most featherboards in our featherboards & workholding collection use standard T-slot bolt mounting, making them directly compatible with our aluminum T-tracks. Pair track and featherboards to create an adjustable workholding system on your table saw or router table.
