Placas de enrutador y elevadores

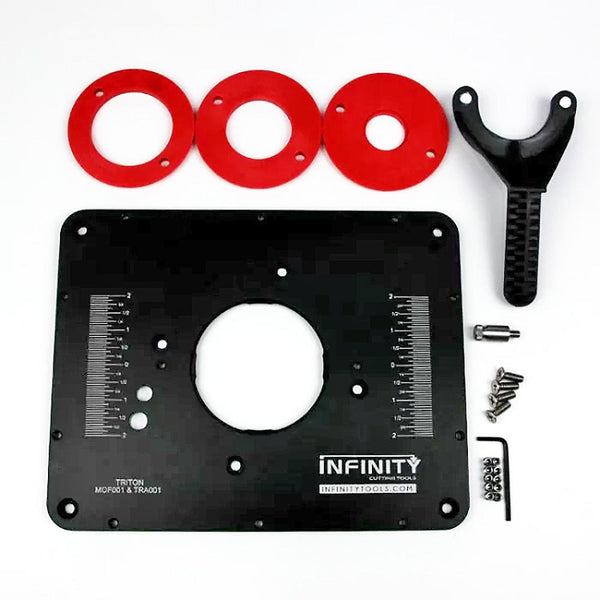

A router table insert plate is a flat panel that drops into the table opening to support the router. Flatness matters because any deviation above or below the table surface creates a step that catches workpieces mid-pass, affecting the quality of cuts and creating a safety hazard. Quality plates include leveling screws to fine-tune flush alignment with the table surface.

A router lift is a precision mechanism that mounts in the insert plate and suspends the router motor. A crank or hex key on top of the table drives a fine-thread screw that raises or lowers the router and bit, allowing accurate above-table bit height adjustment without reaching under the table. This makes incremental height tuning practical and repeatable.

The Mast-R-Lift is JessEm's heavy-duty aluminum lift with a crank handle and above-table bit change capability using a built-in collet lock. The Rout-R-Lift is a more economical entry-level lift designed for fixed-base routers with simpler adjustment. Both accept the same standard plate footprints, and both are available in this collection.

JessEm lifts accept many popular router motor brands through interchangeable motor carrier rings. Compatibility lists are specific to each lift model. Packages that pair a JessEm lift with a specific motor — such as the Triton 3-1/4 HP package — guarantee compatibility without the need to check carrier ring specifications separately.

Router table opening sizes are not fully standardized, but the most common plate dimensions — approximately 9 x 11-3/4 inches and 8-1/4 x 11-3/4 inches — fit the majority of aftermarket and manufactured router table tops. Measure your table opening before ordering. See router table tops & components for table tops sized to accept standard plates.

Insert lock rings are concentric reducing rings that snap into the center opening of the insert plate to provide a smaller opening around the bit. A large opening is needed for large-diameter bits; a small opening supports narrow stock near the bit and reduces the risk of thin material dipping into the gap. The JessEm 10-piece insert lock ring set supplies a full range of opening sizes.

Some lifts, including the JessEm Rout-R-Lift Prestige, are specifically designed to work with plunge-base routers. Standard fixed-base lifts are not designed for plunge routers because the plunge column geometry differs from a fixed base motor body. Always confirm the lift model is rated for plunge router use if that is your intended setup.

Most quality plates include four or more leveling screws at the corners. Place a long straightedge across the plate and adjacent table surface and adjust each screw until no light passes under the straightedge in any direction. Check in multiple directions — the plate must be flat in all planes, not just front-to-back.

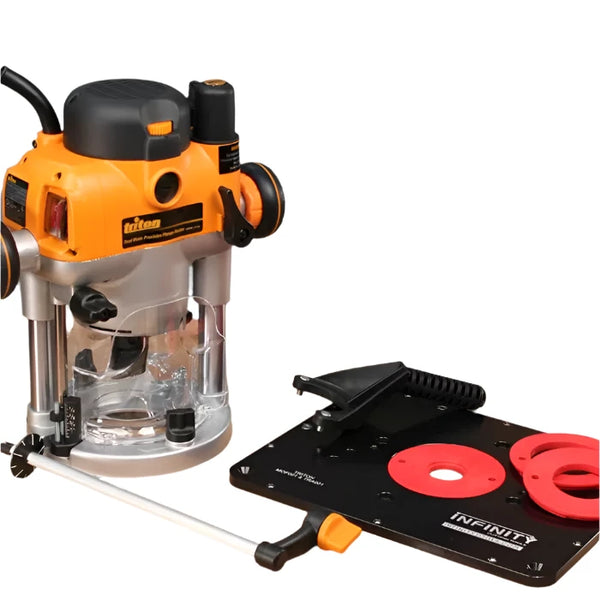

Most lift systems require at minimum a 1-3/4 HP router for general profiling work. For large-diameter bits — lock miters, large raised panel profiles — a 3 HP or greater motor is recommended. The JessEm and Triton package in this collection pairs a proven 3-1/4 HP motor with the lift for capable, versatile table routing.

The Infinity Tools woodworking blog covers router table setup topics including plate leveling, lift installation, and bit height calibration. You can also contact the team directly at the contact page for personalized setup guidance.
